Your Reliable ABC Cable Supplier in China since 2000
Over 20 years experience in researching & manufacturing of this Aerial Bundled Cable, we can offer you a complete range of ABC Cable, together with anchor or dead end clamp and suspension clamp.
- ISO 9001 & 14001 Certificated Factories
- Can offer a full range of ABC Cable in different standards
- Package supply with cable & its associated accessories.

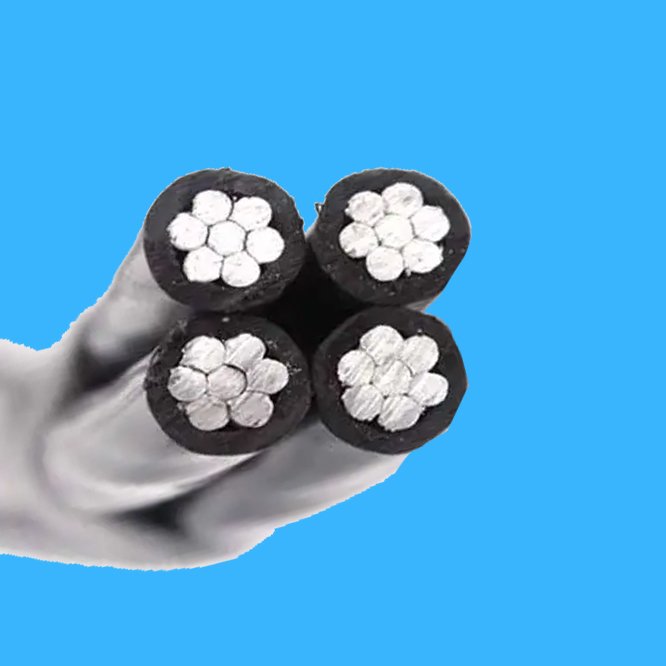

What is an ABC Cable
ABC Cable is short for Aerial Bundled Cable. It is a self-supported,PE or XLPE insulated cables used in low & medium voltage distribution lines.

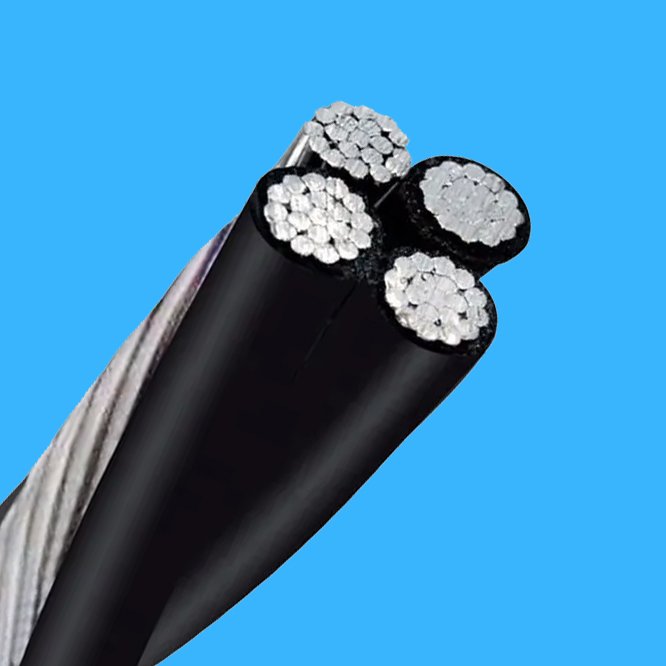

It consists of three phase conductor and a neutral conductor (aluminum alloy) bundled together with or without a street lighting conductor. Due to its high strength of aluminum alloy, the neutral conductor used a messenger wire to support all cables.
ABC cable is allowed to have longer span length, lower mounting and simple installation and it also offers maximum personnel safety and protection. Due to its good resistance to abrasion, heat & coldness, moisture and sunlight, it assures high stability & reliability through long years of services. It is mostly popular in rural areas.
PowerTel & its associated factory have capabilities to offer a full range of ABC cable with different standards, Like NFC 33-209, IEC 60502 & TNB, AS/NZS 3560.1&3599.1&2 and BS7870-5 etc, together with its anchor or dead-end clamp and suspension clamps.

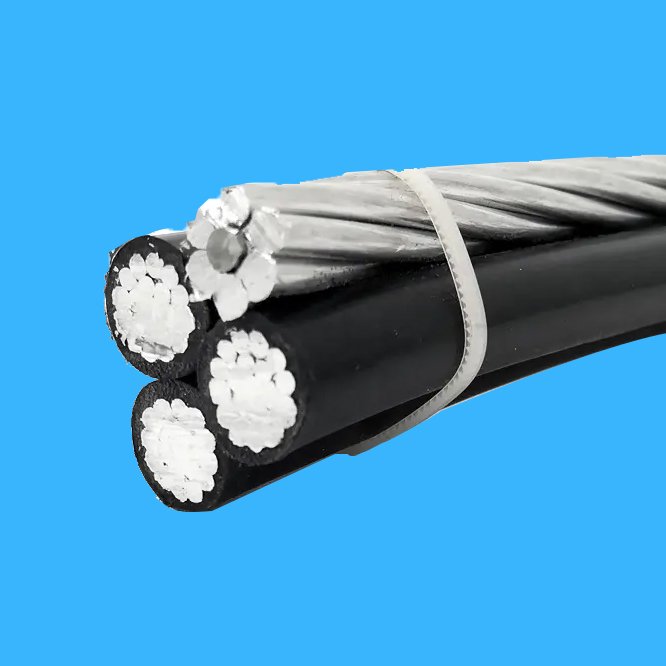

ABC Cable by NFC 33-209 Standard

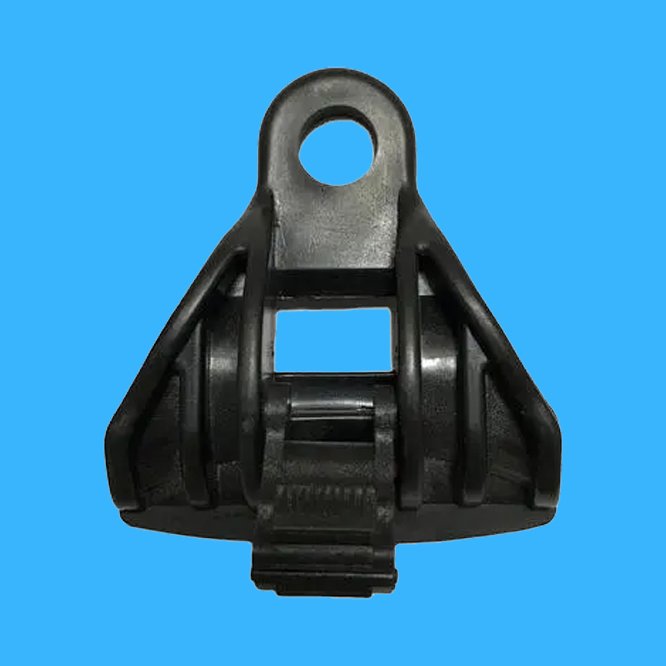

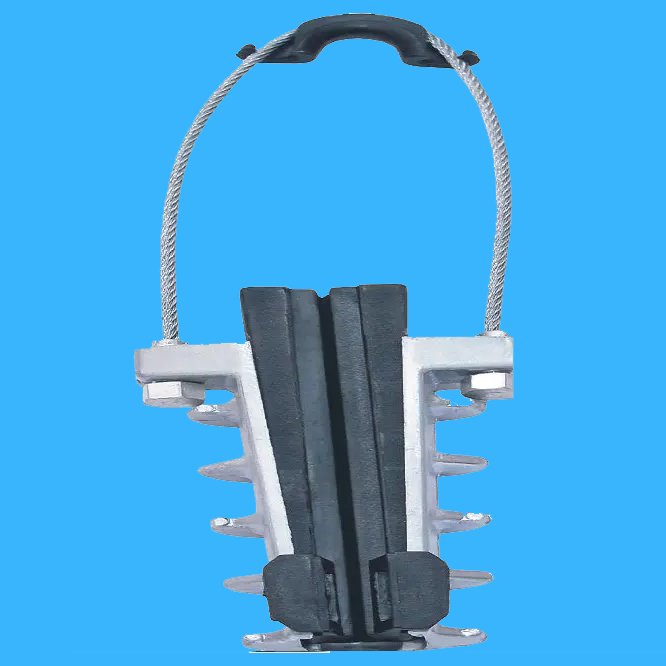

Aerial Bundled Cables are designed & fabricated fully comply with National French Standard NFC 33-209. Hard drawn aluminum conductor is insulated by XLPE and the whole cable is supported by a messenger wire. 1, 2 or 3 street lighting lamp cables are on your special request. Please contact us for a full ABC cable catalogue or a specification of associated suspension clamp and dead-end or anchor clamp.
Standard reference: NFC 33-209
Phase conductor: 3*25mm2
Neutral conductor: 54.6mm2
Supported by aluminum alloy wire 16mm2
Standard reference:NFC 33-209
Phase conductor: 3*50mm2
Neutral conductor: 55mm2
Messenger wire: aluminum alloy wire 16mm2
Standard reference: NFC 33-209
Phase conductor: 3*70mm2
Neutral conductor: 55mm2
Messenger wire: aluminum alloy wire 25mm2
Standard reference:NFC 33-209
Phase conductor: 3*95mm2
Neutral conductor: 70mm2
Messenger wire: aluminum alloy wire 16mm2
Standard reference:NFC 33-209
Phase conductor: 3*120mm2
Neutral conductor: 70mm2
Messenger wire: aluminum alloy wire 16mm2
Standard reference: NFC 33-209
Phase conductor: 3*150mm2
Neutral conductor: 95mm2
Messenger wire: aluminum alloy wire 16mm2

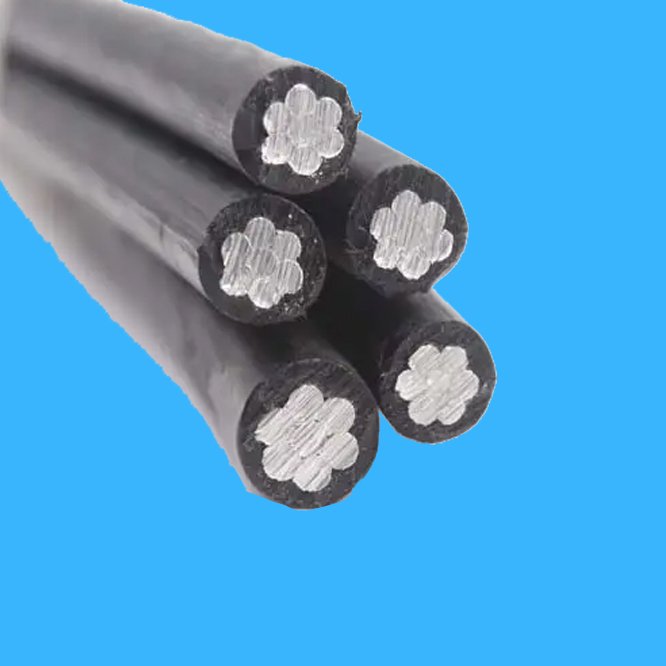

ABC Cable by IEC 60502 & BS 7870-5
-

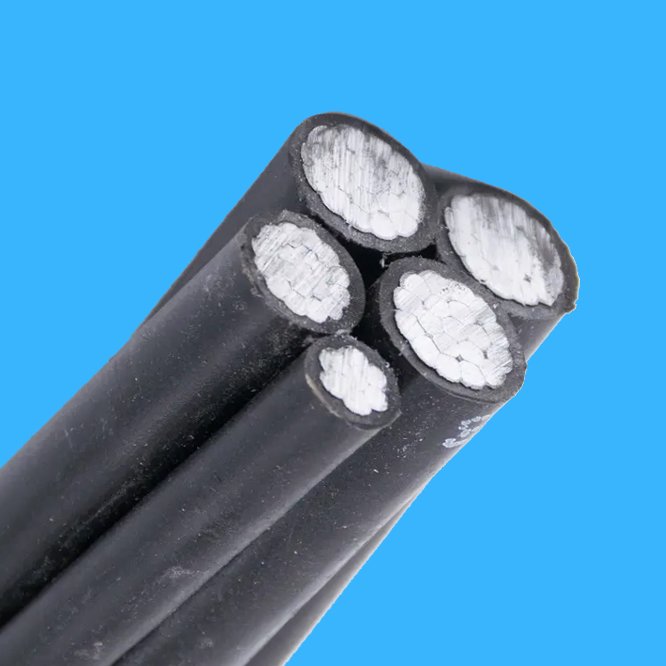

ABC Cable with lighting cable
Standard reference:
IEC 60502 & TNB,with street lamp wire
Conductor size ranged from 25 to 185mm2
-
XLPE insulated ABC cable0.6/1 kV XLPE insulated ABC cable
Standard reference:
BS 7870-5, no street lamp wire
Conductor size ranged from 25 to 120mm2
-
ABC Cable DES Standard0.6/1 kV XLPE insulated ABC cable
Standard reference:
IEC 60502 & DES, with street lamp wire
Conductor size 120 & 185mm2
-
6.35/11 kV PVC sheathed ABC cable
6.35/11 kV XLPE insulated, PVC sheathed ABC cable
Standard reference:
IEC 60502 & TNB
Messenger wire: Galvanized steel wire
Conductor size 50 & 240mm2
-
12.7/22 kV PVC sheathed ABC cable12.7/22 kV XLPE insulated, PVC sheathed ABC cable
Standard reference:
IEC 60502 & TNB
Messenger wire: Galvanized steel wire
Conductor size 50 & 240mm2
-
19/33 kV PVC sheathed ABC cable19/33 kV XLPE insulated, PVC sheathed ABC cable
Standard reference:
IEC 60502 & TNB
Messenger wire: Galvanized steel wire
Conductor size 50 & 240mm2

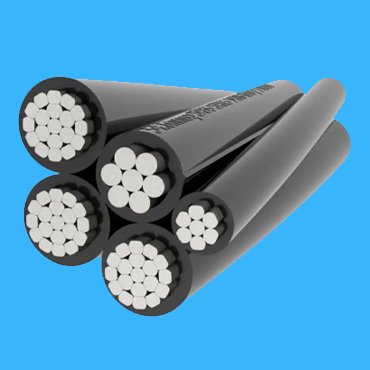

ABC Cable by AS/NZS 3560.1 Standard
-
0.6/1 kV XLPE insulated ABC cable
Standard reference:
AS/NZS 3560.1
Conductor size ranged from 16 to 150mm2
-
6.35/11 kV XLPE insulated, HDPE sheathed ABC cable
Standard reference: AS/NZS 3599.2
Messenger wire: aluminum alloy wire
Conductor size 35 & 185mm2
-
12.7/22 kV ABC cable12.7/22 kV XLPE insulated, HDPE sheathed ABC cable
Standard reference: AS/NZS 3599.1
Messenger wire: Galvanized steel wire
Conductor size 35 & 185mm2
Product Feature Box

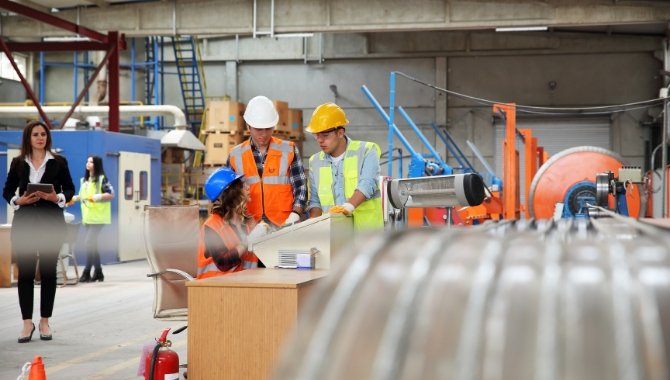

12 Production Lines
Our factory has 20 production lines and 25 testing machines equipped with advanced technology. We are able to produce over 3,000 KM of different types of ABC Cable in each month.
Highly-experienced Workers
Thanks to our highly-experienced workers, who have been trained professionally before beginning their work. Consequently, this would be a key factor to guarantee 100% quality of your ordered ABC Cable.
Our ABC Cables have been granted CCC, PCCC, SGS, and BV certificates. We adhere strictly to the GB, IEC, BS, ICEA, ASTM, DIN, VED, and JIS Standards when designing, manufacturing and testing them. Additionally, we are able to design and produce products according to your technical specifications.
Related Product
Some general info about an ABC Cable.
- What is an ABC Cable? ABC cables are lightweight stranded aluminium conductors, both single core and multi–cores, commonly used for power distribution lines, such as on construction sites and for secondary pole–to–pole service cables and street lighting. Unlike bare conductors which are installed and separated by air gaps, these ABC cables feature XLPE insulation material and, where necessary, a sheathing material, allowing them to be tightly bundled together. Additionally, steel wire supports similar to those used in ACSR can be included as a messenger wire.
- Types of ABC Cable ; Low Voltage ABC Cables are manufactured in accordance with multiple standards, such as British standard BS7870, French standard NF C33 209, Australasian standard AS/NZS 3560 Part 1, and IEC standards IEC 60502–1, TNB Specification, and HD 626 S1. They have a voltage rating of 0.6/1kV and meet Class II according to IEC 61140 to protect against electric shock. This type of ABC cable has an operating temperature range of –40oC to +80oC and can be installed in temperatures as low as –20oC. The phase conductors and the neutral conductor are both Class 2 stranded aluminium with core identification provided by ribs on the insulation; Medium Voltage ABC Cables are available with voltages of 6.35/11kV, 12.7/22kV and 19/33kV, manufactured in accordance with IEC 60502–2 and variants made specifically to Australian and New Zealand standards AS/NZS 3599 Part 1. These higher voltage cables feature XLPE insulation and HDPE sheathing. Screening can be added upon request, in the form of light or heavy duty copper wire or tape depending on the installation parameters.
- Our technical team can help you determine the suitability of these ABC cables for your power distributions lines and figure out the necessary cable size. They can also guide you in deciding whether to use Aerial Bundle Cables or other types of wire & cable, and which accompanying cable accessories are necessary.
