Your Best ADSS Cable Supplier in China since 2010
Being a professional manufacturer of ADSS Cable, we can provide you the full range of ADSS cable and its hardware and fittings.
- Good for short, medium and long span length, up to 1,000 meters or 3,048 feet
- Good for light,Medium and Heavy NESC conditins.
- Fiber counts, up to 864
- Technical support and custom design to fit your requirement

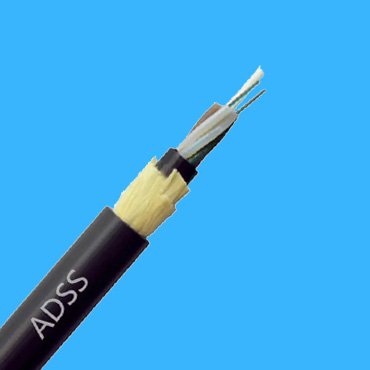

What is ADSS Cable
All Dielectric Self-Support Fiber cable is full name of an ADSS cable, which is a type of fiber optic cable. ADSS cable are designed to withstand high temperature, strong winds, heavy snow and other extreme weather conditions. Additinally, it has a good properties of superior insulation, high tensile strength, ideal for long span length installation.

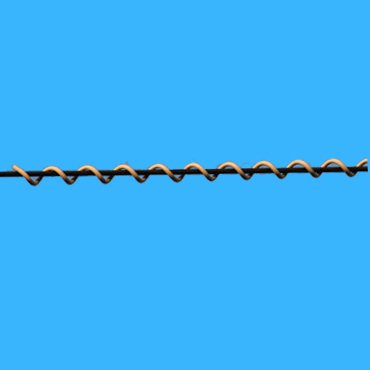

Powertel & its associated factories can provide you the full range of ADSS cable, applied for different span length and good for light, medium & harsh environment conditions, together with its hardware & accessories, like dead-end & suspension clamp, Spiral vibration damper, and Joint enclosure etc.

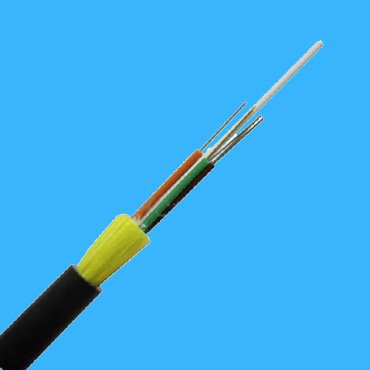

Light NESC ADSS Cable
Fiber counts up to 864 fibers; Custom design of an ADSS cable for span length up to 1,000 meters or 3048 feet.
Medium NESC ADSS Cable
Fiber counts up to 864 fibers; Custom design of an ADSS cable for span length up to 1,000 meters or 3048 feet.
-
ADSS Cable-MEDIUM-24F -
ADSS Cable-MEDIUM-36F
-
ADSS Cable-MEDIUM-48F -

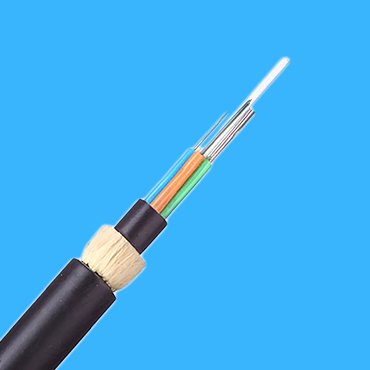

ADSS Cable-MEDIUM-72F -

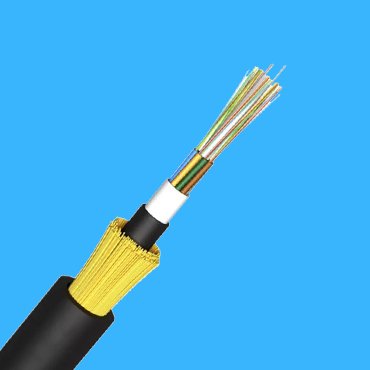

ADSS Cable-MEDIUM-96F -
ADSS Cable-MEDIUM-144F -
ADSS Cable-MEDIUM-288F -
ADSS Cable-MEDIUM-144F
Heavy NESC ADSS Cable
Fiber counts up to 864 fibers; Custom design of an ADSS cable for span length up to 1,000 meters or 3048 feet.
-
ADSS Cable-HEAVY-24F
-
ADSS Cable-HEAVY-48F -
ADSS Cable-HEAVY-72F -
ADSS Cable-HEAVY-96F -
ADSS Cable-HEAVY-144F -
ADSS Cable-HEAVY-288F -
ADSS Cable-HEAVY-144F
Product Feature Box
Custom Designs available for your ADSS Cable
Please consult it with our engineers and they will design an ADSS cable for your project, according to your span length, voltage level of a power transmission or distribution lines.
Fiber Stringing Process
For ADSS cable, it supports to string 864 fibers maximum while 1,728 fibers for micro module or air blowing fiber cable.

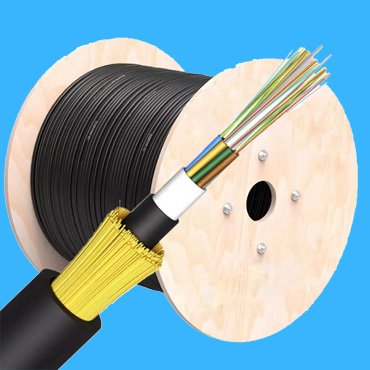

Take-up Equipment for ADSS Cable
ADSS Cable length can be on your request, ranging from 1.000 meters or 3,048 feet to 10,000 meters or 30,480 feet.

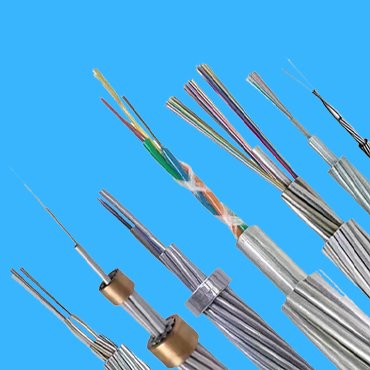

Related Product
What types of an ADSS Cable

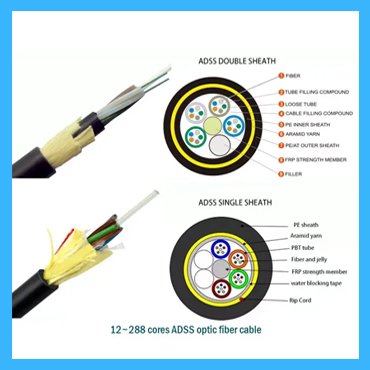

There are three main types of ADSS cable, Central Tube ADSS cable, Stranding form in a single sheath and stranding form in a double sheath with different fiber counts ranging from 6 to 864.

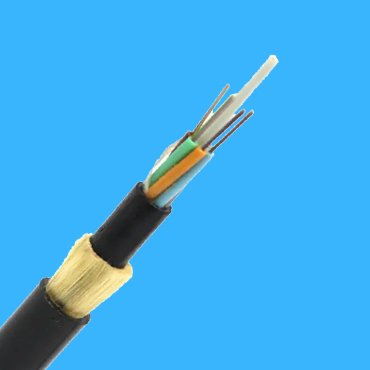

What components of an ADSS Cable
Central FRP element
Optical fibers in single mode or multimode
Loose tube to house and protect optical fibers
Loose tube gel and cable jelly
Aramid yarn, also known as Kevlar, is a high-strength chemical fiber. The usage of Aramid in an ADSS Cable is determined according to the span and wind speed per second.
Water blocking tape: Water blocking tape or yarn used for ADSS cable has strong water absorption performance through uniformly distributed high water absorbing resin inside the product. Under the combined action of immersion pressure, affinity, and rubber elasticity, high water absorbing resin can quickly absorb water several times its own weight. In addition, once the water blocking powder meets water, it will immediately expand the gel. At this time, no matter how much pressure is applied to it, the water will not be squeezed out. Therefore, by wrapping the cable core with a water blocking tape containing water absorbing resin, in case the outer wall of the optical cable is damaged, the high water absorbing resin in the wound area will exert a sealing effect due to expansion, which can prevent the entry of water to the minimum extent.
Outer sheath or jacket, Generally for ADSS Cable, HDPE or tracking resistance PE is used, and the surface should be smooth, bright, flexible, and easy to peel off.
Common fault causes for ADSS cable and its Countermeasures
Increased loss at the original connection point of one or several optical fibers,
Installation problem of fiber optic connection point protection pipe or leakage of joint box
Step in attenuation curve of one or several optical fibers
ADSS cable was maybe twisted by mechanical force, and some of the fibers were broken but not yet broken
One fiber has a decay step or broken fiber, while the others are intact
In this case, ADSS cables are affected by mechanical forces or due to manufacturing reasons
Horizontal elongation of attenuation steps at the original connection point
Broken fiber obstruction near the original connection point
All communication is blocked for a single ADSS cable
- ADSS cable is cut, exploded, or collapsed due to external forces
- Power supply system interruption
