ADSS Cable Hardware

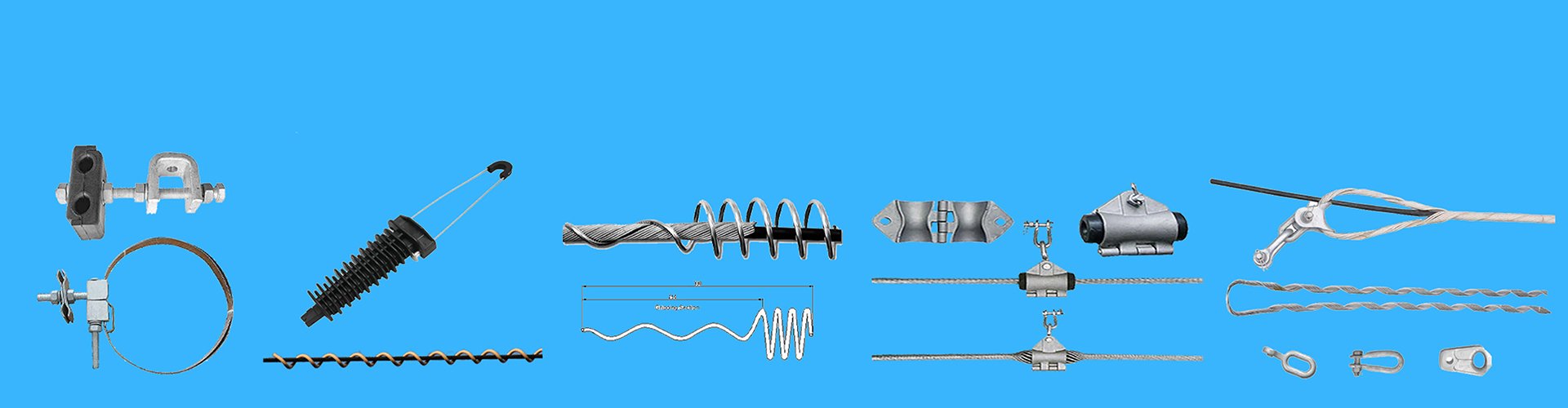

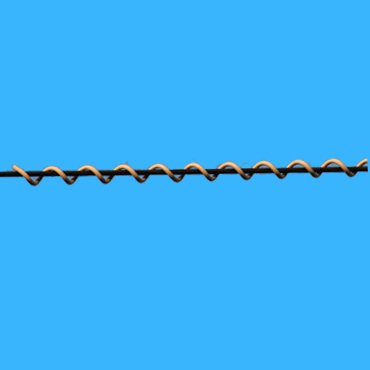

ADSS Cable, due to its own characteristics, it can withstand its own weight and external loads; When installed on power poles and towers, it is necessary to have some matching hardware and accessories to fix the cables on the poles and towers, like dead-end or tension clamp, single or double suspension clamp, downlead clamp, corona coil, spiral vibration damper and joint enclosure.
PowerTel & its associated factory can provide you a full range of ADSS Cable hardware for your installation of ADSS Cable and offer you some technical guide if it is necessary.
ADSS Cable Hardware
Anti-corona Ring for ADSS Cable
When an ADSS cable installed on a power transmission line, and its voltage level more than 110 kV, An anti-corona ring will be used to corona discharge, thus to reduce the electrical corrosion and ensure the ADSS cable has a longer lifespan.
Preformed Tension Clamp
Preformed tension clamp is used for fixing and anchoring ADSS cable and is generally installed in terminal towers, tension towers, corner towers, and other locations.
Preformed Suspension Clamp
On a power transmission or distribution line, if an ADSS cable installed in line angle less than 30 degree, at this time, an suspension clamp need to be added to protect the cable.
Related Products
Installation Guide for ADSS Cable Hardware
- it is easy to cause damage to ADSS cable when installing the hardwares, especially for preformed one; it is necessary to use special installation hardware, while the use of screwdrivers and similar tools are prohibited.
- Due to the inevitable presence of dust and moisture on the surface of ADSS cable and in the surrounding air, there is a certain amount of electrical charge on its surface. Therefore, when installing these hardware on high voltage towers, the ADSS cable and its hardware should be grounded before being directly touched. When splicing fibers in ADSS cable , the cable located in the work area and between the static end connection fittings should be reliably grounded.
