Your Reliable Electrical Busway Manufacturer in China since 2000
As a professional supplier over 20 years, we are able to provide you a wide range of electrical busway and a custom one to fit your power distribution system seamlessly.
What is an Electrical Busway
It consists of metal plate (steel plate or aluminum plate) as protective shell, conductive bar, insulating material and relevant accessories. Key features of our electrical busway are: High rated current up to 7500A ; High conductivity & overload capacity, depends on the operating temperature of the insulating material used, up to 140 ℃. It used air to conduct heat dissipation, and emits heat through the closely contacted metal shell, so its heat dissipation performance is much better than that of cable; Compact design to save your space considerably; Easy & quick installation and free maintenance cost.
PowerTel & its associated factory can offer you a consulting service from the very beginning of your project, a tailored design of electrical busway to connect primary & secondary side of your transformer with low voltage panels and Medium voltage switchgear, plus testing & commissioning work for your whole electrical distribution system.

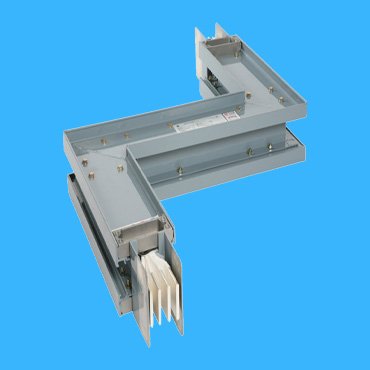

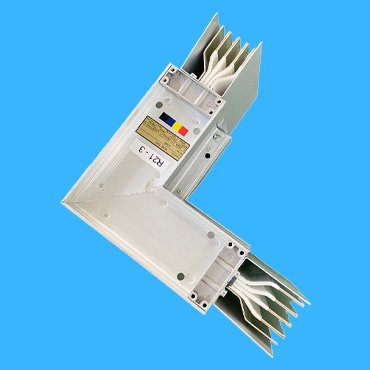

Electrical Busway by its Shape
Product Feature Box
High Safety and Reliability
All AL or Cu busbar wrapped with two insulation layers, Prior to leaving the factory, it is subjected to having a 3750V AC high voltage test to guarantee 100% insulation performance.
Wide Range of Designs
The electrical busway offered by our company has a variety of designs that can meet even the most demanding requirements of your customers. We are well-equipped to create robust electrical systems with a seamless connection of your transformers and LV panels & MV Switchgear.
Technical Consulting and Support
Our design department can provide comprehensive consulting and design support from the very beginning of your project, and technical support is running through from the very begining of your project, design, fabrication, installation & comissionng and lifecycle maintenance of electrical busway.
What is the difference between an electrical busway and an electrical duct
To be simple, an electrical bus duct is used to house and protect aluminum or copper bus, while an electrical busway is an insulated aluminum or copper bus and used to connect secondary side of a distribution transformer and LV panels, and used to connect some other electrical equipments. Due to its high current carrying capacity and good heat dissipation, it replaces some cable buses, thereby reducing the time and cost of making cable joints, and also improving the stability and safety of the entire distribution system；it is widely used in some large factories, high-rise buildings, and data centers.
Related Product
What is difference between electrical busway and cable tray & raceway
An electrical busway used copper bar and aluminum bar as the conductive medium. It is easy to install, disassemble, maintain and adapt to the environment. The cable tray & raceway can be installed either in the open or in the dark. Generally, it is made of cold and hot rolled plates, stainless steel, glass fiber reinforced plastic, PVC, aluminum alloy and other materials, and its surface is subject to anti-corrosion treatment such as painting and electroplating. There are trough type cable tray, tray type cable tray, ladder type cable tray, combined cable tray, long-span cable tray, new bolt free cable tray, etc. The cable tray can also be understood as the cable trench laid in the air, which serves as the fixed support and protection support for the cable routing in the air.
Cable tray & raceway is used to lay power cables and control cables, and electrical busway is used to lay conductors; the turning radius of a cable tray & raceway is relatively large, while radius of an electrical busway is relatively small.
What are the different types of electrical busways?
Normally, it has three main types of electrical busway. they are Compact electrical busway, Plug-in electrical busway and air insulated electrical busway.

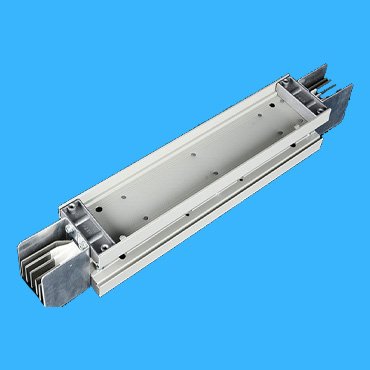

Compact electrical busway
it has large current carrying capacity, good dynamic and thermal stability, small size, good heat dissipation, low temperature rise, and is suitable for the transmission of high-power current. It is divided into three-phase four wire system and three-phase five wire system.
Working frequency: 50 or 60Hz
Rated voltage level: up to 690V,
Rated current: 250~6300A
Plug-in electrical busway
Conventional busway, equipped with plug interface to split current flow.
Equipped with air circuit breaker to protect overload & short circuit.
100A, 200A, 400A, 630A on your request.
Air Insulated busway
when the current is 100A or below, the air type busway should be selected.
We have capacities to provide you a tailored electrical busway with an current carrying capacity up to 6,300A, Please consult it with our expert technicians for some further information about electrical busway and its package solution to your electrical distribution system, including distribution transformer, low voltage panels and medium voltage switchgear etc.
