Your Best EPON OLT Supplier in China
What is an EPON OLT
As we know, in an Ethernet Passive Optical Network, an OLT passive equipment is used to collect the data from different users and send them upstream and allocate the data downstream to various ONUs and it is designed for high speed data delivery. Advantages of an EPON OLT, it is cost effective, its high scalability and stable reliability.

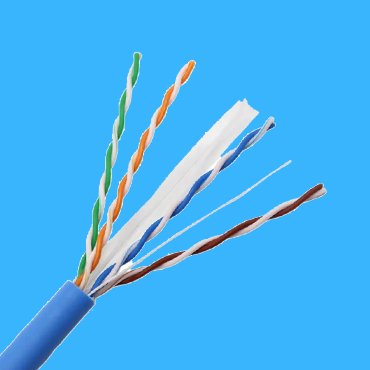

We can offer you an EPON OLT equipment for your different applications, additionally, we can also provide you technical consulting and a package supply of indoor fiber cable, PLC splitter, patch cord cable and CAT5e or CAT6 UTP cables for buidling up your EPON network at lowest possible costs.
EPON OLT in different ports

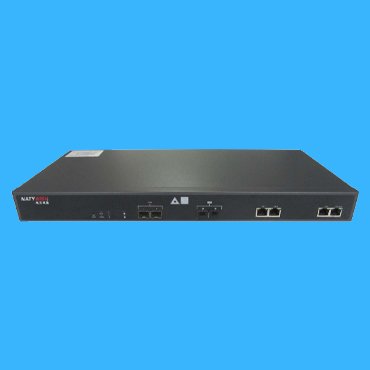

6 GE interfaces (2 gigabit optical ports, 2 Combo ports, 2 gigabit electrical ports); 2 fixed EPON interfaces
PON interface uplink and downlink symmetric 1Gbps transmission rate
Average luminous power of PON port:+2dbm~+7dbm
PON port receiving light sensitivity: not less than – 30dBm
Security: ONU authentication mechanism
Network coverage radius: 30 km
Standard reference IEEE802.3ah

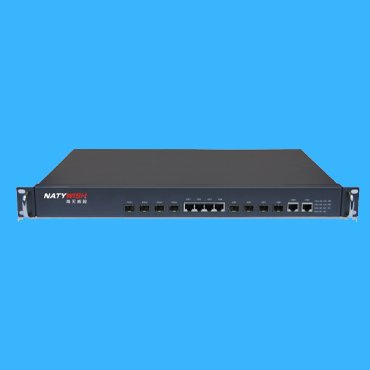

12 GE interfaces (8 gigabit RJ45 ports, 2 Combo ports, 4 10G optical ports)
4 fixed EPON interfaces
PON interface uplink and downlink symmetric 1Gbps transmission rate
Average luminous power of PON port:+2dbm~+7dbm
PON port receiving light sensitivity: not less than – 30dBm
Security: ONU authentication mechanism
Network coverage radius: up to 60 kilometers
Switching capacity 108Gbps
Packet forwarding rate (IPv4/IPv6) 80Mpps

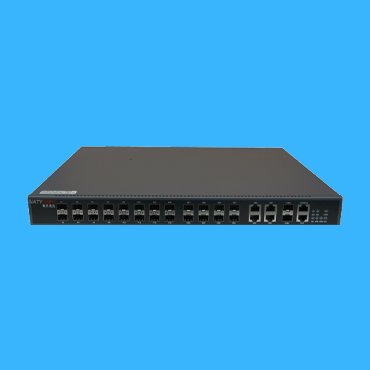

Service port 8 * PON interface, 8 * 10/100/1000 Base-T interface, 4 * 10000Base-SR/LR/ER interface
Redundant design with dual power supply can support dual AC input, dual DC input and AC+DC input
Power AC: input 90~240V 47/63Hz;
DC: input – 36V ～ – 72V;
Full load power consumption ≤ 56W
System capacity up to 1:64 spectral ratio
Backplane bandwidth 128G
MAC table capacity: 32K

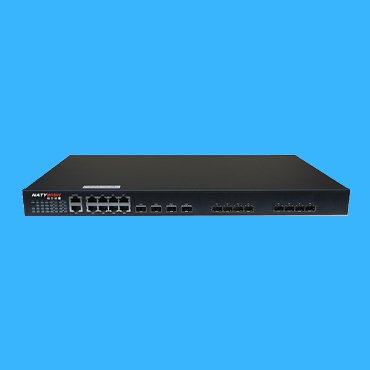

PON interface PON 16 EPON interfaces
8 GE interfaces (4 gigabit optical ports, 4 gigabit optical multiplexing ports)
Scalable 2-way 10-Gigabit interface
PON interface characteristics: uplink and downlink symmetric 1Gbps transmission rate PON interface average luminous power:+2dbm~+7dbm
PON port receiving light sensitivity: not less than – 30dBm

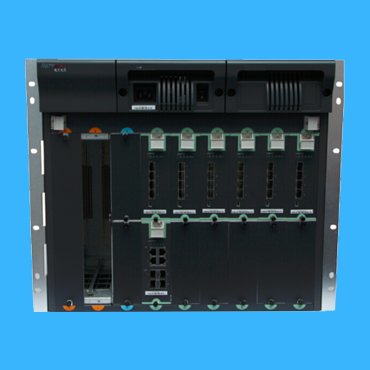

Backplane bandwidth>6.4Tbps
Switching capacity 3.2Tbps
Packet forwarding rate (IPv4/IPv6) 2860Mpps
Total number of slots 18
Number of service slots: 16
Service ports can support up to up to 256 EPON ports and 32 GE ports
Up to 32 10GEPON ports and 32 10GE ports can be supported simultaneously up to 64 10GEPON ports and 64 10GE ports
12 GE interfaces (8 gigabit RJ45 ports, 2 Combo ports, 4 10G optical ports)
4 fixed EPON interfaces
PON interface uplink and downlink symmetric 1Gbps transmission rate
Average luminous power of PON port:+2dbm~+7dbm
PON port receiving light sensitivity: not less than – 30dBm
Security: ONU authentication mechanism
Network coverage radius: up to 60 kilometers
Product Feature Box

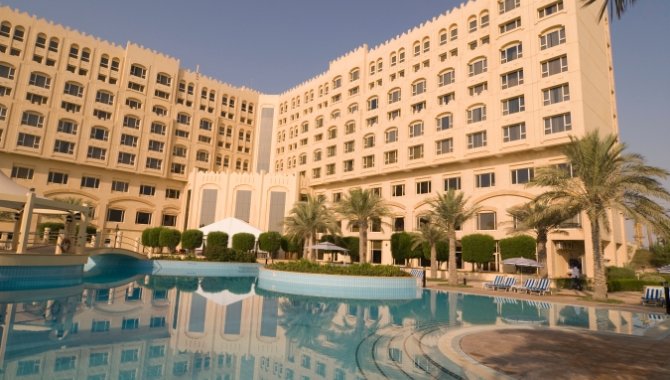

EPON Solution for Hotels
The entire system can connect guest rooms, offices, security rooms, and other network equipment such as various models of computers, switches, IP cameras, and wireless APs. Support multiple networking methods. Support the implementation of extended functions such as IP telephony and WIFI.
EPON Solution for School Campus
Using EPON technology, we have constructed a campus network backbone to achieve connectivity between various office areas, teaching buildings, and dormitory buildings, as well as fast Ethernet access, improving transmission efficiency, and effectively ensuring the development of remote multimedia teaching, digital library, and other services.
EPON Solution for Buildings
Advantages of EPON tech in building access: 1. It can reduce the occupation of backbone optical fiber resources and save investment. 2. Simple network structure, flexible networking, and strong scalability. 3. The entire system has high stability and scalability EPON system can provide QoS guarantee for each business of each user.
Related Product
Why Choouse Our EPON OLT?
- Up to 48 service ports, allow you have more choice of this OLT equipment to fit your requirement
- Strivly comply with the requirements of standard IEEE 802.3ah, improve your EPON netowrk in a higher security, efficiency and stability.

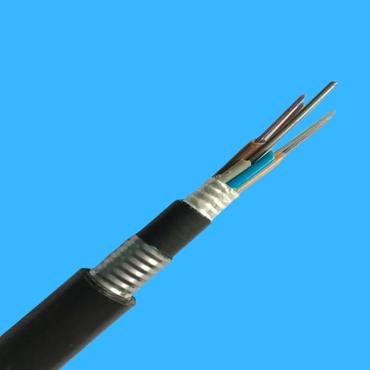

- package supply of all materials to build up your new EPON network or upgrade your existing netowork; Except this OLT equipment, we are also available PoE, fiber patch chord cable, fiber splitter, pigtail , adapters and connectors etc.
- finally, it is our most competitive price and a prompt shipping time, drawing on our large stock for these materials.
Please contact our expert engineers to help you to select a best type of EPON OLT equipment for your telecommunication projects.
