What is an EPON ONU
EPON ONU here means a telecommunication equipment used in an EPON network.
ONU is short for Optical Network Unit, it is one type of passive optical network equipment,in-housed an optical splitter coming out of a wide range of optical pigtails to connect different terminal devices, such as computers, phones, routers, etc.A it is used to convert optical signals into electrical signals.nowadays widely used in an EPON network. Good compatibility, low construction and maintenance costs, high bandwidth, high access reliability, and unique advantages over other access technologies.
We can provide you a wide range of EPON/ONU products and some tailored ones to build up or upgrade your netwrok.
EPON ONU
User interface 4 fixed 10/100/1000M BASE-T adaptive RJ45 interfaces
PON interface uplink and downlink symmetric 1Gbps transmission rate
Network coverage radius: 20km
Optical interface type: SC/PC
High sensitivity optical receiver: not less than – 30dBm
Luminous power: 2-7dBm
Security: ONU authentication mechanism

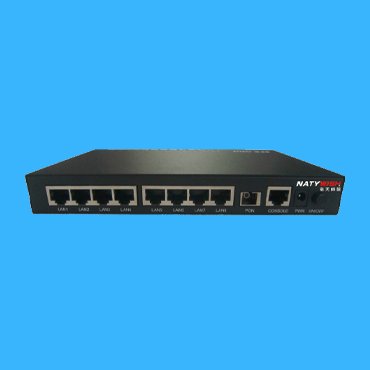

8 fixed 10/100/1000BASE-T
1 fixed PON port
System capacity up to 1:64 spectral ratio
PON interface uplink and downlink symmetric 1Gbps transmission rate
High sensitivity optical receiver: not less than – 30dBm
Security: ONU authentication mechanism
Network coverage radius: 30 km

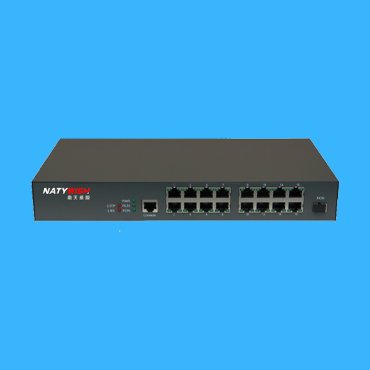

16 fixed 10/100BASE-T
1 fixed PON port
System capacity up to 1:64 spectral ratio
PON interface uplink and downlink symmetric 1Gbps transmission rate
High sensitivity optical receiver: not less than – 30dBm
Security: ONU authentication mechanism
Network coverage radius: 30 km
24 fixed 10/100BASE-T
1 fixed PON port
System capacity up to 1:64 spectral ratio
PON interface uplink and downlink symmetric 1Gbps transmission rate
High sensitivity optical receiver: not less than – 30dBm
Security: ONU authentication mechanism
Network coverage radius: 30 km
4 fixed 10/100/1000M BASE-T adaptive power supply RJ45 interfaces
PON interface uplink and downlink symmetric 1Gbps transmission rate
Optical interface type: SC/PC
Network coverage radius: 30 km
High sensitivity optical receiver: not less than – 26dBm
Luminous power: 2-7dBm
Security: ONU authentication mechanism
8 fixed 10/100/1000M BASE-T adaptive power supply RJ45 interfaces
PON interface uplink and downlink symmetric 1Gbps transmission rate
Optical interface type: SC/PC
Network coverage radius: 30 km
High sensitivity optical receiver: not less than – 26dBm
Luminous power: 2-7dBm
Security: ONU authentication mechanism
Uplink interface 1 EPON interface, SC single mode single fiber, symmetrical 1.25Gbps
Wavelength Transmission wavelength 1310nm, reception wavelength 1490nm
Optical connector SC connector
Downlink data interface: 1 adaptive 10/100/1000Mbps Ethernet port, full duplex/half duplex, RJ45 electrical port
Five indicator lights are used to indicate the status of power supply, PON port and network port
Power interface+12V, external AC-DC power adapter
Power consumption ≤ 2.5W

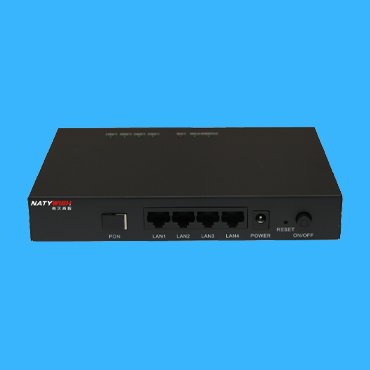

4 fixed 10/100/1000M BASE-T adaptive RJ45 interfaces
PON interface uplink and downlink symmetric 1Gbps transmission rate
Optical interface type: SC/PC
Network coverage radius: 30 km
High sensitivity optical receiver: not less than – 26dBm
Luminous power: 2-7dBm
Security: ONU authentication mechanism
Uplink interface 1 EPON interface, SC single mode single fiber, symmetrical 1.25Gbps
Wavelength Transmission wavelength 1310nm, receiving wavelength 1490nm, CATV wavelength 1550nm
Optical connector SC connector
Downlink data interface 4 adaptive 10/100Mbps Ethernet ports, RJ45 electrical ports
Two FXS and RJ11 downlink voice interfaces
10 indicators, respectively used to indicate the status of power supply, PON port, network port and telephone port
1 power switch
DC power interface+12V, external AC-DC power adapter
Power consumption ≤ 13W
Uplink interface: 1 EPON/GPON interface, SC single mode single fiber, symmetrical 1.25Gbps
Wavelength Transmission wavelength 1310nm, reception wavelength 1490nm
Optical connector SC connector
Downlink data interface 4 adaptive 10/100/1000Mbps Ethernet ports, RJ45 electrical ports
Downlink voice interface 2 POTS, RJ11
There are 13 indicators for indicating the status of power supply, PON port, network port and telephone port
1 power switch
DC power interface+12V/1.5A, external AC-DC power adapter
Power consumption ≤ 10W
Uplink interface: 1 EPON/GPON interface, SC single mode single fiber, symmetrical 1.25Gbps
Wavelength Transmission wavelength 1310nm, reception wavelength 1490nm
Optical connector SC connector
Downlink data interface 4 adaptive 10/100Mbps Ethernet ports, RJ45 electrical ports
Downlink voice interface: 1 POTS, RJ11
There are 13 indicators for indicating the status of power supply, PON port, network port and telephone port
1 power switch
DC power interface+12V/1.5A, external AC-DC power adapter
Power consumption ≤ 10W
Uplink interface: 1 EPON/GPON interface, SC single mode single fiber, symmetrical 1.25Gbps
Wavelength Transmission wavelength 1310nm, reception wavelength 1490nm
Optical connector SC connector
Downlink data interface 4 adaptive 10/100/1000Mbps Ethernet ports, RJ45 electrical ports
Downlink voice interface 2 POTS, RJ11
There are 13 indicators for indicating the status of power supply, PON port, network port and telephone port
DC power interface+12V/1.5A, external AC-DC power adapter; Power consumption ≤ 10W
Product Feature Box
Related Product
Design of ONU in an EPON system
Gigabit Ethernet passive optical network (EPON) is an optical access network technology with a point to multipoint topology structure. It adopts Passive optical device to connect office end and remote end equipment, to achieve transparent transmission of Ethernet services, and to achieve access to integrated services such as voice and video in the same architecture. The outstanding advantages of EPON as an emerging access network technology lie in its low cost, easy maintenance, and good scalability. The EPON system consists of OLT, ODN (optical distribution network) and ONU. The hardware of the ONU system consists of two parts: a control module and a network switching module. The control module is the control and management core of ONU, providing a hardware platform for the operation of the operating system. Through it, the control and configuration of the network switching module are achieved, achieving the normal operation of the network switching module. The network switching module provides the function of exchanging and forwarding Ethernet frames. The control module communicates with the network switching module through PCI, visits the registers of each chip inside the network switching module, configures each chip, and retrieves the status information of each chip.
Advantages of an EPON ONU
Relying on EPON uplink, providing small and medium-sized multi-service access network methods. For example: ADSL2+, VDSL2+, POTS, LAN, etc ; Convenient and flexible networking applications; Easy and fast installation; High reliability and maintainability.
EPON application scenario – office buildings (FTTB)
The OLT is placed in the office computer room, and the high-rise can consider dividing the light inside the building. Other areas can consider dividing the light in the community. MDU equipment can be placed centrally or separately according to the height of the floor. The construction cost is lower than FTTH, but maintenance is not convenient.; For residential areas with broadband and narrowband needs (Scheme 1) or newly built buildings, built-in AG platforms or stacked IAD methods can be used to solve narrowband voice, while providing broadband access through MDUs. Need to consider IAD power supply issues; For office buildings, residential areas, or existing buildings that only require broadband, broadband access can be directly provided through MDU devices, and voice services can be provided through office equipment.
EPON application scenario – video surveillance
Video surveillance projects have a high demand for uplink bandwidth, a large number of terminals, wide distribution, wide EPON coverage distance, fiber saving, and high bandwidth, making them suitable technologies for achieving video surveillance ; Adopting EPON as the global eye bearer network also has the advantages of high reliability, anti-interference, and easy maintenance; ONU needs to have certain environmental adaptability to meet the requirements of outdoor applications.
EPON Application Scenario – Communication Network between villages
The purpose is characterized by dispersed access points, a small number of single point users, low demand for broadband, low ARPU value, complex environment, and generally no or poor computer room conditions; EPON’s tree based networking method fully adapts to the characteristics of rural terrain, effectively saves optical fibers, and terminals can provide GE or E1 interfaces, fully meeting the needs of rural wide and narrow bands. Combined with outdoor cabinets, it greatly reduces the cost of rural network construction; Passive networking has high reliability, low maintenance costs, and power outage nodes will not affect other nodes.
