What is a Fiber Optic Patch Panel
Fiber Optic Patch Panel, also known as Fiber Optic Distribution Panel.
It is an integral telecommunication device used in a Optical telecommunication Network; For a conventional fiber optical patch panel, it consists of the following parts; Racks, providing the foundation for installing and fixing other components in a patch panel; Fiber optic cable entry unit, making sure fiber cable can be enter into the patch panel safely & stably; Fiber splicing tray, a place used to splicing the fibers;Fiber optic adapters and jumper panels, a place to assemble fiber adapters and connectors; Fiber optic storage tray, a place used to store the spliced fibers;Identification system,Through clear identification, you can quickly identify the fiber source, where to go, and purpose of fiber optic cables,thus to improve efficiency & everything in a good management. There are four main types fiber optical patch panel available in our factory and custom design & fabrication is available as well. They are Rack-Mounted Patch Panels,Drawable-Type Panels,Wall-Mounted Units and its modular designs.
PowerTel & its associated factory can provide you a full range of fiber optic patch panel for your different applications and a tailored one on your unique need.
Fiber Optic Patch Panel by its installation Style

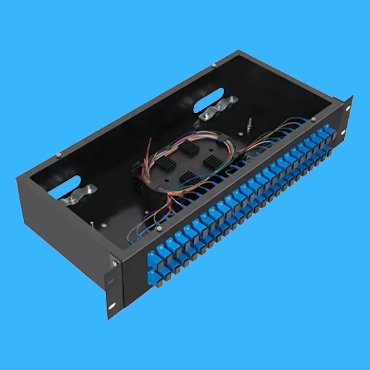

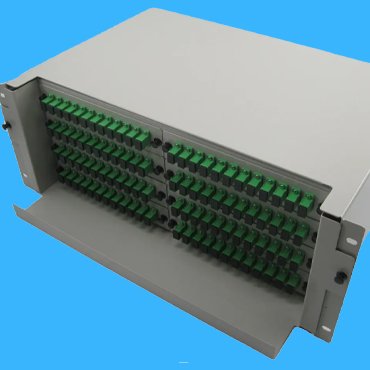

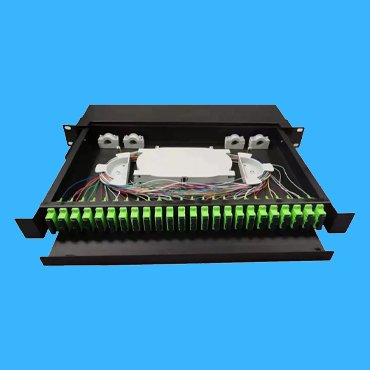

It is Rack-Mounted & Wall-Mounted type fiber optic patch panel.
19,21,23 inches to your rack systems
Simplex SC/LC adapters on your request
Duplex SC/LC adapters or MPO Module on your request
Gray or black color to your need
19,21,23 inches to your rack systems
Cold-rolled steel or Stainless Steel to your options
Duplex SC/LC adapters or MPO module on your request
Fixed,sliding or rotary cable tray
Comply with UL 1863 & CSA 22.2
Unloaded or loaded with adapter & pigtail on your request
Fiber Optic Patch Panel Equipped with MPO Module
Fiber alignment is a key factor for MPO/MTP cable, our innovative technical solutions offered a sturdy & durable performance for precise pin in male connector, hole in female connector and its coupling, thus to ensure an accurate fiber alignment.
-
Made of cold-rolled or stainless steel

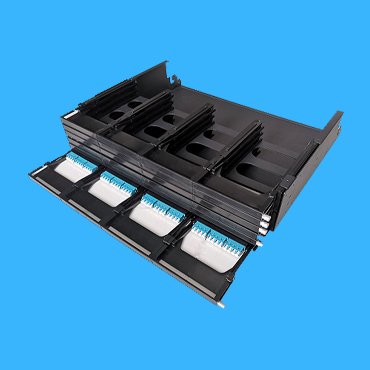

Up to 288 Fiber Splicing
RoHS Compliant
-

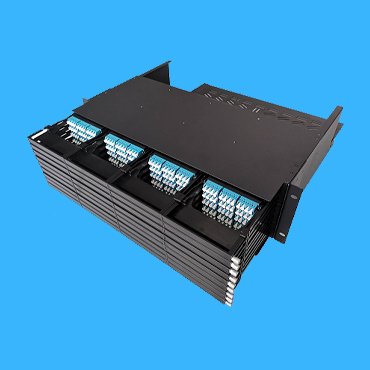

3U Rack-mounted Fiber Optic Patch PanelEquipped with 9 sliding cable trays,Up to 432 Fiber Splicing
Color : Gray, Black on Your Request
-

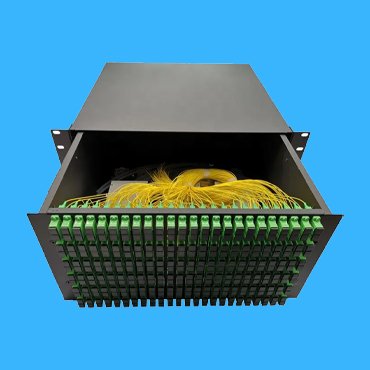

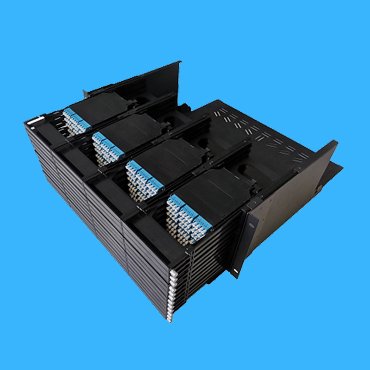

4U Rack-mounted Fiber Optic Patch PanelEquipped with 12 pcs sliding cable tray, up to 576 fiber splicing
Widely used in Data Centers.
Product Feature Box
Continous Research & Development for Patch Panel
Our continous R & D work keep us innovated to your new fiber network or an upgrade to your exsiting network.
Fast Delivery Time

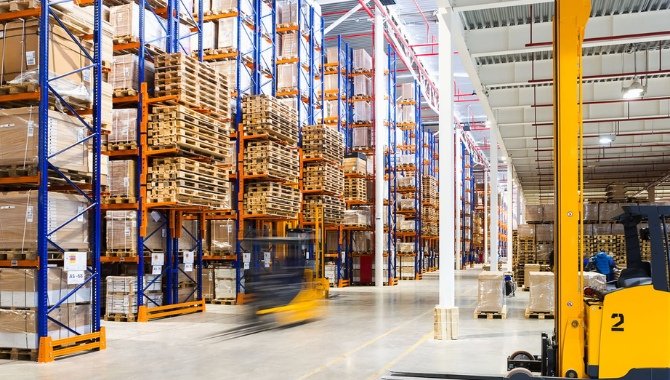

Based on our large production capacity & inventory, we can make a possible delivery in 5 days on the confirmation of your order.

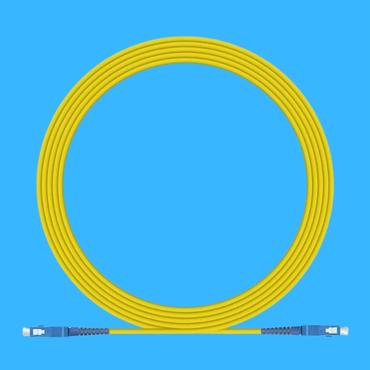

Related Product
These fiber optic patch panel normally used in some telecommunication rooms, data centers, residential buildings (FTTH), and some other industrial & commercial buildings.
Through fast developing of optical telecommunication network,his development trends would be in a higher density in fibers, more intelligent management, modular design, (already occurred and applied) , Integration with new fiber optic technologies.
