Your Reliable GPON OLT Supplier in China
Started from 2009, We are a high-tech enterprise specializing in the technical development, technical services, production and sales of optical transmission equipment such as GPON/EPON systems, data access, and industrial transmission equipment; The product has successively passed FCC, CE, UL, ROHS certification, as well as product testing certification from the Ministry of Public Security, the Ministry of Transportation, the Ministry of Information Industry, and the Technical Supervision Bureau. At the same time, it has obtained multiple product patents. Our GPON OLT products have covered industries such as government, banks, highways, telecommunications, real estate, social security, industrial and mining factory. And we sell our products to more than 50 countries and regions around the world, including Europe, the Americas, and Southeast Asia.
What is a GPON OLT
OLT refers to optical line terminal, and an OLT equipment is used to connect the terminal equipment of optical fiber trunk line. It is an optoelectronic equipment, which can be connected with the front-end (convergence layer) switch by network cable, converted into optical signals, and interconnected with the optical splitter at the user end by a single optical fiber; Realize the control, management and ranging of the ONU of the user equipment; Like ONU equipment in GPON network. it send Ethernet data to ONU (optical network unit) by broadcast; secondly, Initiate and control the ranging process and record the ranging information; thirdly, Allocate bandwidth for ONU;
Except this GPON OLT equipment, We can also provide you GPON ONT equipment, EPON OLT & EPON ONU products for your different applications, together with some SFP moudle, fiber patch cord cable and CAT 5e or CAT 6 UTP cables.

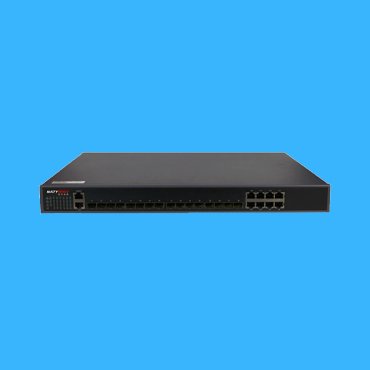

GPON OLT
Provide high-density PON ports, and the entire machine can support 2048 ONU terminals when fully equipped, with a larger capacity than regular box OLT. Each PON port supports a 1:256 optical division ratio (maximum access to 256 ONUs), and can be configured with up to 8 10 Gigabit interfaces. The hot plug PON optical module is designed to support a transmission distance of up to 65Km
It has an expansion slot for 2 10 Gigabit SFP+ports; Provides 8 downlink GPON ports, 4 uplink GE optical ports and 4 uplink GE electrical ports, fully configured with 1024 ONU terminals.
It has an expansion slot for 2 10 Gigabit SFP+ports; Provides 16 downlink GPON ports, 4 uplink GE optical ports and 4 uplink GE electrical ports, fully equipped up to 2048 ONU terminals.
Support end-to-end (OLT to ONU/ONT) network-wide QoS solutions; Support GPON access capability and smooth upgrade to the future 50GPON; Support three-layer static routing, RIP, OSFP/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, VRF
Support two-layer features VLAN+MAC forwarding, SVLAN+CVLAN forwarding, PPPoE+
OLT supports the initiation of 802.1x and portal authentication, and can provide wired portal authentication security access for end users
Support IPv4 and IPv6 dual-stack, IPv6 two-layer and three-layer forwarding, DHCPv6 relay
Support the scheduling of eight queues based on PON interface, and support the scheduling of queues based on 802.1p
Support switching capacity ≥ 3.6Tbps, packet forwarding rate ≥ 2100Mpps; A single equipment supports 8/16 gigabit optical interfaces and 2 upper connecting board slots
Support IPv4 and IPv6 dual-stack, IPv6 two-layer and three-layer forwarding, DHCPv6 relay; Support ITU-T G.984.7 GPON standard, IEEE802.3av 10GEPON standard; Support 4K VLAN, PVLAN, Super Vlan, VLAN Stacking;Support IPv6 ND, Pv6 ACL, NAT-PT, IPv6 tunnel, 6PE, Ipv6 static routing, RIPng, OSPFv3, BGP4+
MAC addresses up to 256K
ARP/routing table entry 64K
Number of GPON ports up to 272
Number of XG-PON ports up to 136
Number of 10G EPON ports 136
Number of GE/FE ports 816
10GE port number 136 56
10GE port number 136 56
Product Feature Box
Investing Heavily on Product Research and Development
The annual R&D investment accounts for over 15% of the company’s annual output value. Our products adopt advanced design concepts and are centered on high-end technology. With the successive launches of XPON systems, POE products, high-definition optical transceivers, fiber optic transceivers, data switches, and industrial switches, we have accumulated many industry-leading technologies, including audio and video communication, optical transmission networks, and access networks.
GPON OLT Having a Wide Range of Applications
Till Today, our GPON OLT products have already widely used in hotels, school campus, government, banks, hospitals, highways, industrial and mining enterprises, rail transit, etc
Custom Design for your Network
We are dedicated to improving and enhancing our technical level and service quality for the purpose of serving our customers to the best of our ability. We are committed to providing users with the most reliable, feasible solutions in terms of pre–sales support, after–sales service, training and maintenance. Additionally, our custom solutions will help you build or upgrade your network at lowest costs.
Related Product
Suggestions for GPON OLT deployment plan
It will consist of the following contents:
GPON OLT deployment plan ; Network equipment requirements and product introduction; Network evolution direction; Budget for build up a GPON network
1. Divide each local network into large areas based on coverage distance and business development plan, and establish 9-10 aggregation computer rooms; Local networks with dense business coverage such as Wuhan are planned to have 30-40 convergence computer rooms;
2. GPON OLT is deployed in each regional aggregation machine room. Adopting rack mounted large capacity OLT equipment, deploying 1 set of OLT equipment in each computer room, adopting dual main control, dual power supply, and dual uplink to improve equipment reliability;
3. A local network with metropolitan area network resources, OLT is connected to the convergence layer switch, and broadband service authentication is completed by the local network BAS, while VOIP voice service is provided by IMS+GPON;
4. For local networks without metropolitan area network resources, MSCG devices are deployed in each local network. MSCG devices also serve as BRAS, SR, and SBC functions, directly connecting CMNET to the access nodes of each local network. GPON OLT is connected to MSCG, which completes broadband service authentication, and IMS+GPON provides VOIP voice services.
5. If OLT and MSCG are in the same computer room, they are directly connected; OLTs that are not in the same computer room will be connected to the aggregation layer OTN network and then to the MSCG device;
6. The PON port of the OLT device is connected to the ONU terminal equipment through the ODN network (including ODF, splitter, optical handover box, etc.) to achieve the access of final customer services;
7. The ODN network can adopt a two-level splitting mode to improve the utilization of PON ports and meet the access of ONU terminals at different distances and regions;
8. In areas with demand, Mini OTN and GPON can be used to cooperate in networking, extend the distance between OLT and ONU, and achieve access layer business protection for important customers.
Technical Requirements for GPON OLT Equipment
Hardware requirements : Distributed platform architecture, avoiding bottlenecks in business processing , slot bandwidth bidirectional 20GE, meeting GPON networking requirements; There are more than 50 PON ports in a single frame, which can meet the networking needs of large capacity and few offices, and can provide 10GE uplink to meet future network bandwidth expansion needs. The platform’s switching capacity reaches the terabit level, ensuring that the access bandwidth is unblocked; The MAC address table has a capacity of 32K, meeting the broadband requirements for wide coverage user access.
Reliability requirements: It realizes service control based on VI LAN, supports VLAN switching, flexible QinQ, VI Lan Stacking, etc; Support distributed multicast.
