Your Reliable GPON ONU Supplier in China
As a professional GPON ONU manufacturer over 15 years, we are able to provide you a wide range of GPON ONU products and its associated accessories, including
- SFP Module
- Network Cabinet
- Ethernet Cable & its Patch Cord Cable
- Fiber Optic Cable & its Patch Cord Cable
- Cable Patch Panel & Cable Joint Enclosure
- Network Switch & Custom Design for your Network
What is a GPON ONU
It is a terminal telecommunication device in a GPON network, which mainly used to get terminal access and provide various internet services such as broadband, internet surfing, HDTV, and video conference etc.
Main Features of GPON ONU equipment
The main use of GPON ONU is to receive data from OLT (Optical Line Terminal) and forward it to user terminal equipment.
- Broadband access;Voice service; Video services;Supports high-definition television (HDTV) and video conferencing; Monitoring services: can be used for security monitoring and other scenarios.
In addition, ONU also has the following functions:
Selective reception: Only receive data sent by OLT that belongs to oneself.
- Bandwidth management: Optimize bandwidth resources through dynamic bandwidth allocation (DBA) technology.
Quality of Service (QoS) guarantee: Ensure the priority and service quality of different businesses.
High cost-effectiveness: Based on mature technology, providing high bandwidth and high reliability.
Easy to manage: Supports centralized management and remote configuration.
Strong compatibility: Compatible with mainstream OLT devices such as Huawei, ZTE, etc.
Flexible installation: Supports multiple installation methods, such as ceiling mounted and wall mounted.
There are few technical points for a GPON ONU, we need to take into the considerations.
Interface type: 1 GPON interface, multiple Ethernet interfaces (such as Gigabit Ethernet ports), and some models also support analog telephone interfaces.
- Transmission rate: The downlink rate can reach 2.5Gbps, and the uplink rate can reach 1.25Gbps.
- Spectral ratio: Supports a maximum spectral ratio of 1:128.
- Transmission distance: The maximum physical transmission distance can reach 20 kilometers.
Wireless function: Some models support Wi Fi 6 technology, providing dual band concurrency and a maximum wireless speed of 2976Mbps.
We can supply you a wide variety of GPON ONU products, associated with its ethernet cable & its patch cord cable, Fiber optical cable and its patch cord cable and SFP module etc.
GPON ONU in Different Port
4 Ethernet RJ45 interfaces to realize the integration of ONU and Ethernet switch in GPON+LAN access scheme and Enable all users to share 1.25G uplink and 2.45Gbps downlink bandwidth more reasonably, achieve reliable quality of service (QoS), and ensure the quality of service of different services in a same network.

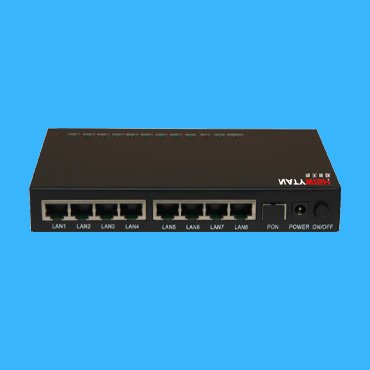

8 Ethernet RJ45 interfaces to realize the integration of ONU and Ethernet switch in GPON+LAN access scheme and Enable all users to share 1.25G uplink and 2.45Gbps downlink bandwidth more reasonably, achieve reliable quality of service (QoS), and ensure the quality of service of different services in a same network.

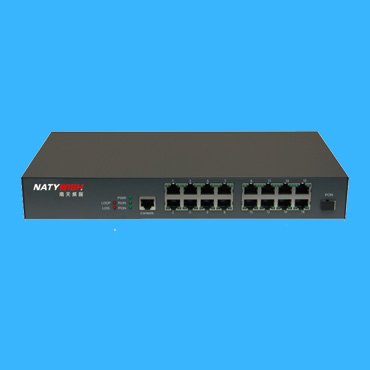

16 Ethernet RJ45 interfaces to realize the integration of ONU and Ethernet switch in GPON+LAN access scheme and Enable all users to share 1.25G uplink and 2.45Gbps downlink bandwidth more reasonably, achieve reliable quality of service (QoS), and ensure the quality of service of different services in a same network.

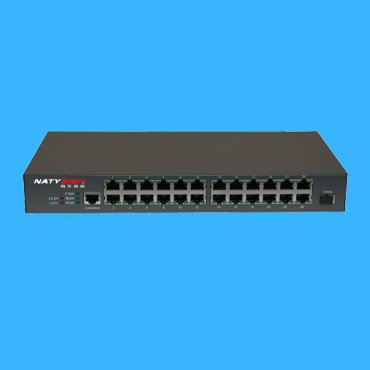

24 Ethernet RJ45 interfaces; adopted point-to-multipoint network topology effectively collect and gather the scattered Ethernet services of users, and standard RJ45 fast Ethernet interface is provided on the user side to smoothly interconnect with the existing network.
Downlink 2.5Gbps/uplink 1.25Gbps transmission rate
Network coverage radius: 20km
Optical interface type: SC/UPC
Receiving sensitivity: ≤ – 28dBm
Transmitting optical power: 0.5~5dBm
Security: ONU authentication mechanism
8 10/100/1000BASE-T port + 1 POE port
1 or 2 GPON/XGS-PON ports
System capacity up to 1:64 spectral ratio
PON interface uplink 1.25G. downlink symmetric 2.45Gbps transmission rate
High sensitivity optical receiver: not less than – 30dBm; Network coverage radius: 60 km
Four 10/100/1000 Base-T Ethernet data interfaces are provided to support
Ethernet self-negotiation and MDI/MDIX automatic detection function
Line-speed transmission of all packet length range data; Built-in Layer 2 switch
Four 10/100/1000BaseT-RJ45 interfaces to provide data and IPTV services
1 RJ11 POTS interface to provide voice service
1 802.11 n/b/g WiFi standard interface
Power supply 12V DC input
UPS is optional
Two fibers access, providing broadband and CATV services
Fully compatible with ITU-T G.984, with GPON uplink
Support 4 FE adaptive interfaces
Support OMCI+TR069 management mode
Ethernet self-negotiation and MDI/MDIX automatic detection function
Support the configuration of Ethernet interface speed, working mode and Pause flow control
Support line loopback detection function of Ethernet interface on user side
Product Feature Box
Passive Optical Network, Providing Multi System Access
Based on our full range of telecommunication equipment for passive optical network, We are committed to provide multi system access for hotels, school campus, hospital, banks, commercial & industrial buildings etc.
Tailored Design for your Network Access
We have already become a major supplier of video surveillance, fiber optic network access equipment, and comprehensive access solutions. our tailored solutions are designed to provide you with reliable, safe, and cost–effective network access.
Related Product
General requirement for GPON ONU
High degree of product serialization, meeting the diverse networking needs of the access layer; The interface, capacity, size, etc. can meet the needs of various access scenarios, different types of customers, and different businesses; Having good lightning protection characteristics, broad voltage and temperature and humidity requirements.
Device plug and play, automatic business distribution, reducing the difficulty of device installation; Equipped with a comprehensive network management maintenance and management solution that meets the functions of massive ONU deployment, status monitoring and detection, batch upgrade, and report statistics;
Low power consumption, low heat dissipation, low noise, meeting the requirements of energy conservation, emission reduction, and green environmental protection; Having a flexible power backup plan.
